CHILLER / COOLING & HEATING

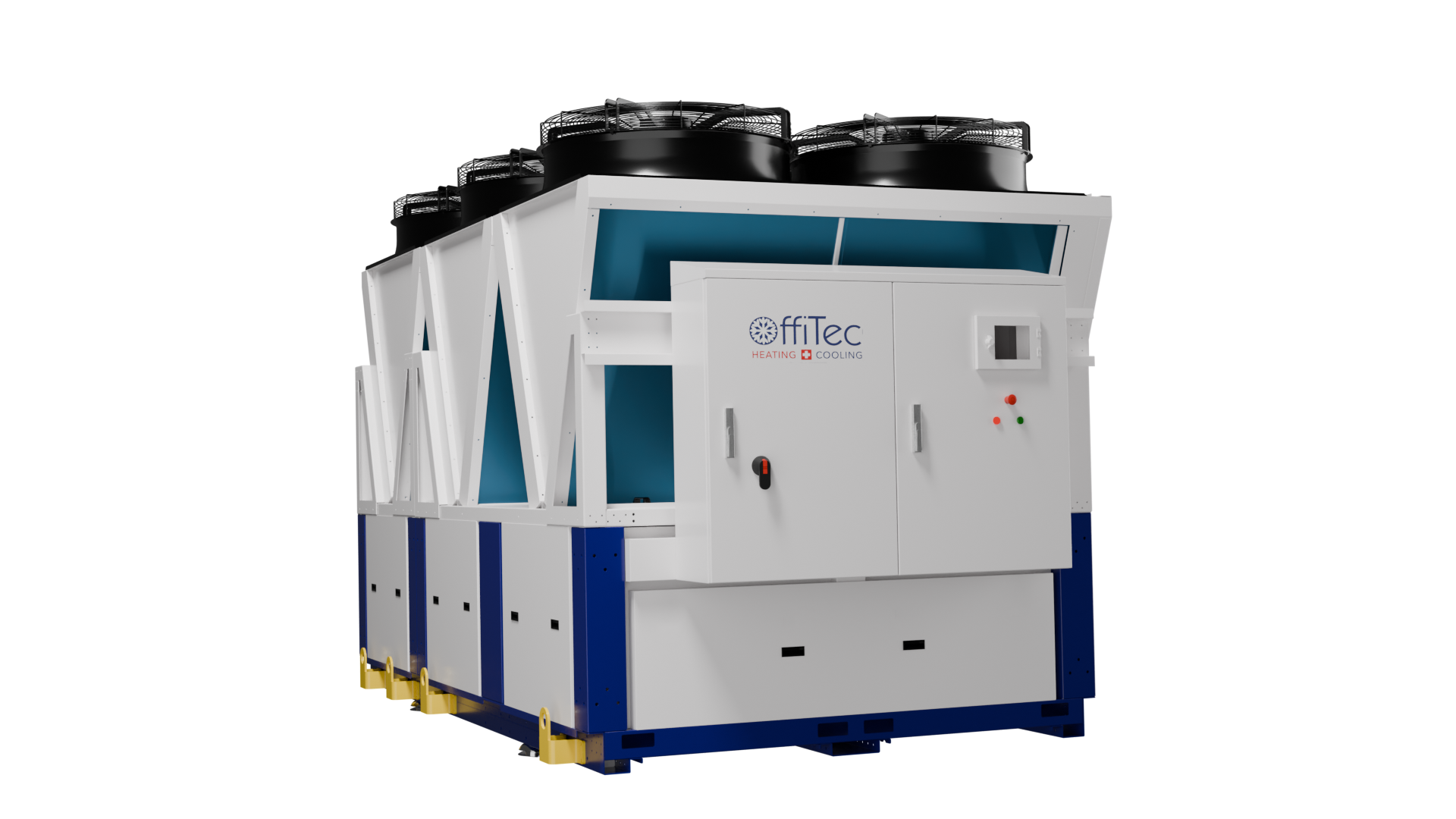

The OffiTec air-cooled chiller unit provides a highly efficient and reliable cooling solution for industrial facilities, data centers, commercial buildings, and process cooling applications. Its advanced fan technology, optimized heat exchangers, and durable body design ensure long service life. With its modular structure, it adapts easily to diffe
Cooling Capacity
450 kW (35/40 °C, 7/12 °C)
Energy Efficiency
EER up to 3.15 – part load optimized
Sound Pressure
Down to 58 dB(A) at 10 m
Refrigerant
R410A (option R32 / R454B)
CLIMATE LAB
Air-cooled chiller for chilled water production in HVAC and process applications. Scroll compressors, shell & tube condenser and plate evaporator. Performance data according to EN14511 and Eurovent conditions.
| Cooling capacity | 450 kW @ 35 °C ambient / 7–12 °C water |
|---|---|
| EER (full load) | 3.15 |
| Cooling capacity (partial load) | 120–450 kW (multi-scroll staging) |
| Heating capacity (heat pump) | 480 kW @ 7 °C ambient / 40–45 °C water |
| COP (heating) | 3.25 |
| Chilled water temperature range | +5…+18 °C |
| Leaving water temperature stability | ±0.5 K with electronic expansion valve |
| Max leaving water temperature (heat pump) | +55 °C |
| Ambient temperature range (cooling) | -10…+46 °C (low ambient kit optional) |
| Net dimensions (L×W×H) | 4200 × 2200 × 2500 mm |
|---|---|
| Net weight | 3,250 kg |
| Refrigerant type | R410A (option R32 / R454B) |
| Number of circuits | 2 independent refrigerant circuits |
| Water connections | DN125 flanged (inlet / outlet) |
| Nominal water flow | 77.4 m³/h (ΔT = 5 K) |
| Water pressure drop | 55 kPa (plate heat exchanger) |
| Max working pressure (water side) | 10 bar |
| Min water content (system) | 1.5 L/kW (min. 675 L) |
| Sound pressure level (10 m) | 58 dB(A) – night mode available |
| Installation location | Outdoor – rooftop, yard or technical terrace |
| Power supply | 400 V / 3Ph / 50 Hz (+/-10%) |
|---|---|
| Installed power (compressors) | 4 × 75 kW scroll compressors |
| Fan motors | EC axial fans, total 8 pcs |
| Maximum running current | ~360 A |
| Starting method | Soft start / inverter (depending on configuration) |
| Control panel | Microprocessor controller with BMS (Modbus / BACnet) |
| Protection degree | IP54 electrical cabinet |
| Remote on/off & alarm contacts | Standard, volt-free contacts |
